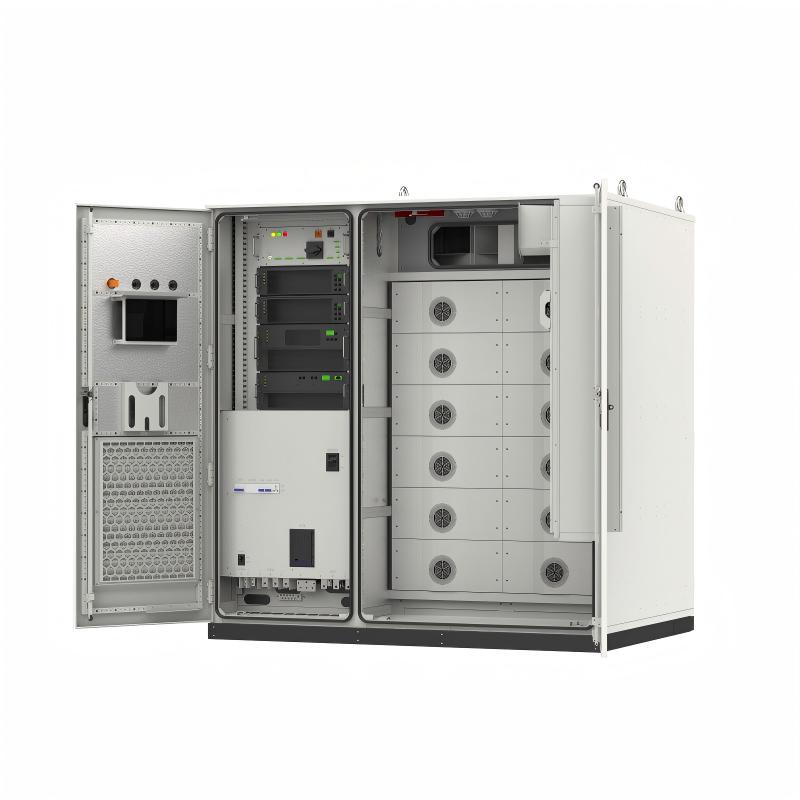

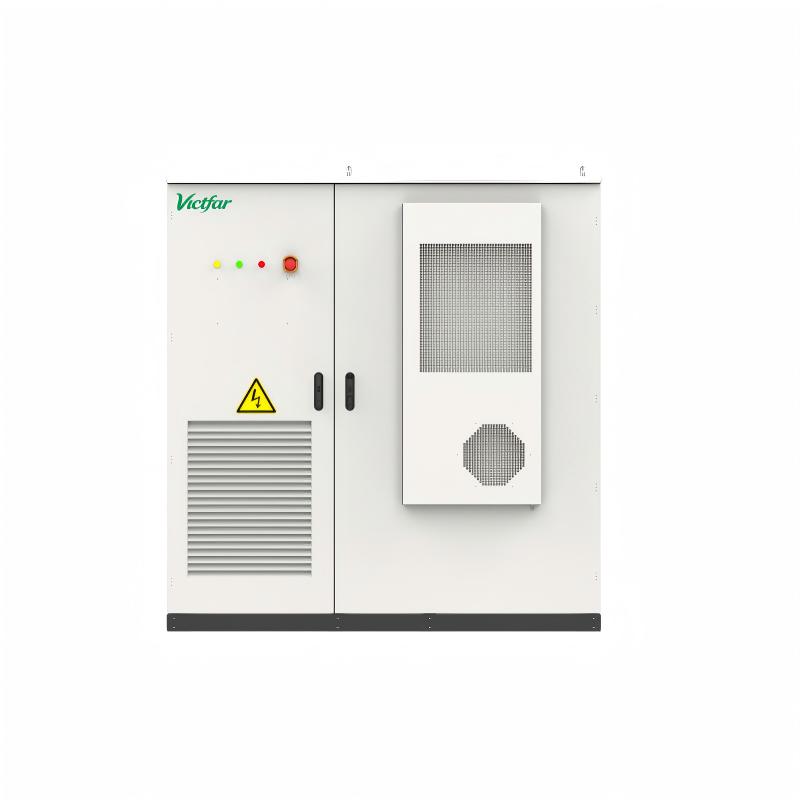

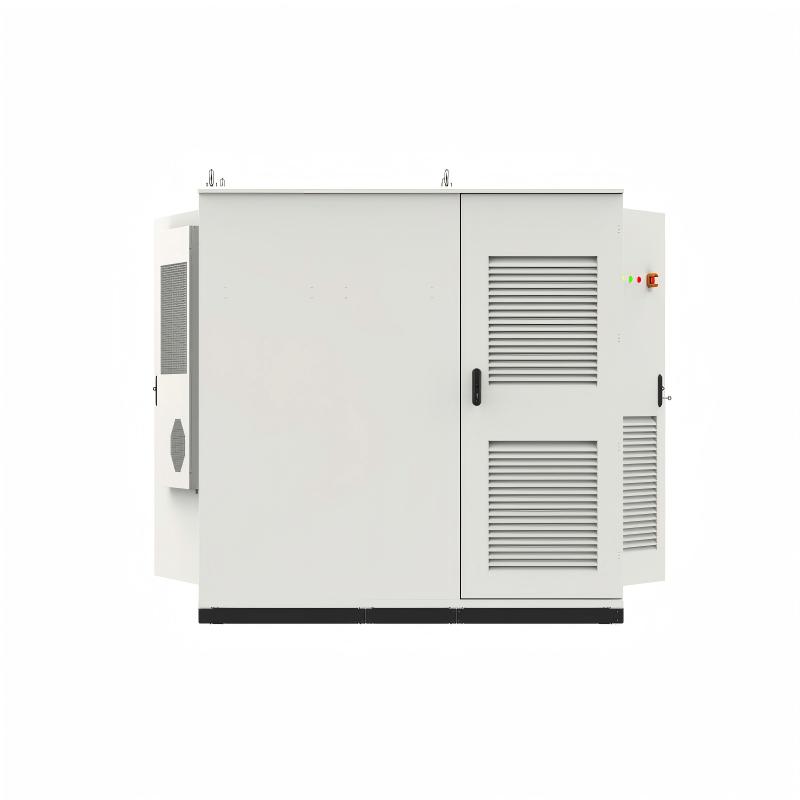

241kWh Air‑cooled All‑in‑one Outdoor C&I BESS Cabinet
Supports grid‑tied, off‑grid, PV and diesel generator linkage
Dual‑level fire protection: pack‑level and cabinet‑level
IP54 outdoor protection rating
Grid‑tied to off‑grid transfer time ＜10ms, seamless power switch‑over during power outage

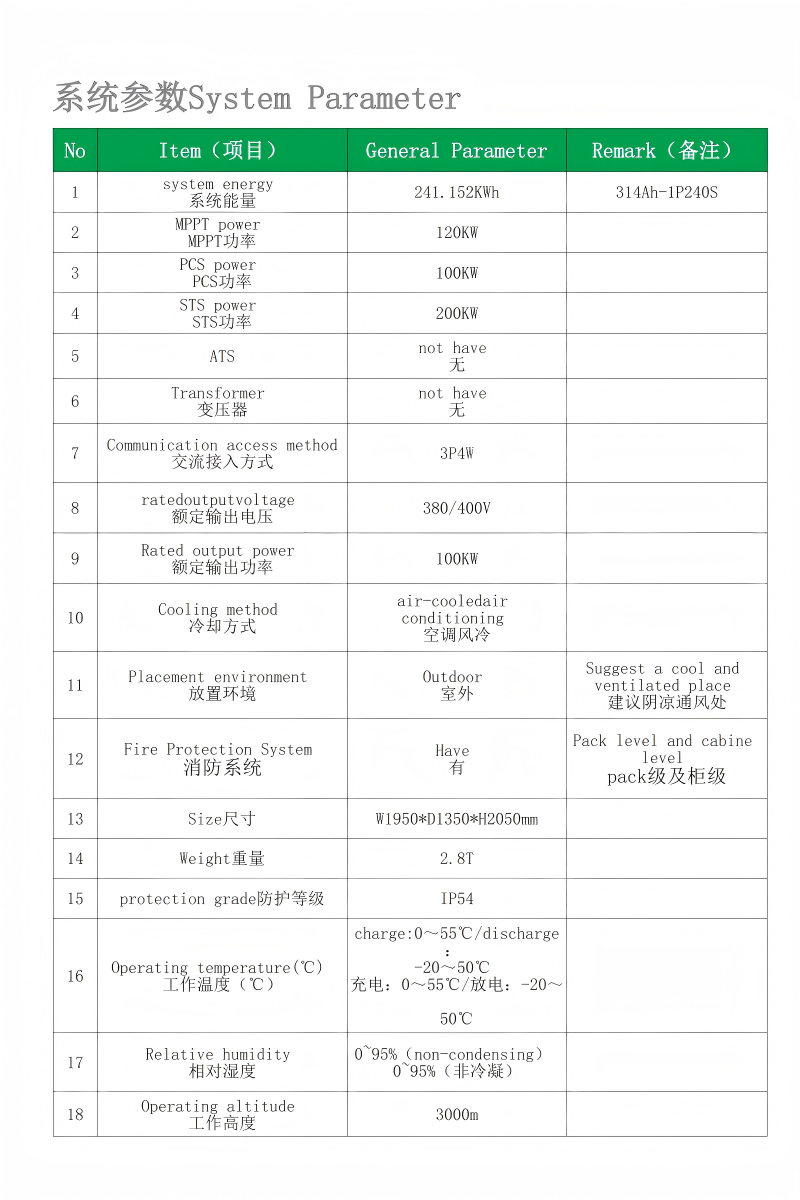

Air‑cooled All‑in‑one Commercial & Industrial Battery Energy Storage System, system capacity 241.152kWh, PCS rated power 100kW, integrated with 120kW MPPT PV module and 200kW STS static transfer switch; 3‑phase 4‑wire 380/400V AC output.
HYB configuration: grid‑tied + off‑grid + PV access + diesel generator linkage. Outdoor cabinet‑type unit, IP54 protection grade, without built‑in transformer, approx. 2‑hour backup duration. Equipped with dual‑level fire‑protection system at pack‑level and cabinet‑level, designed for commercial & industrial projects such as factories, industrial parks and micro‑grids.
