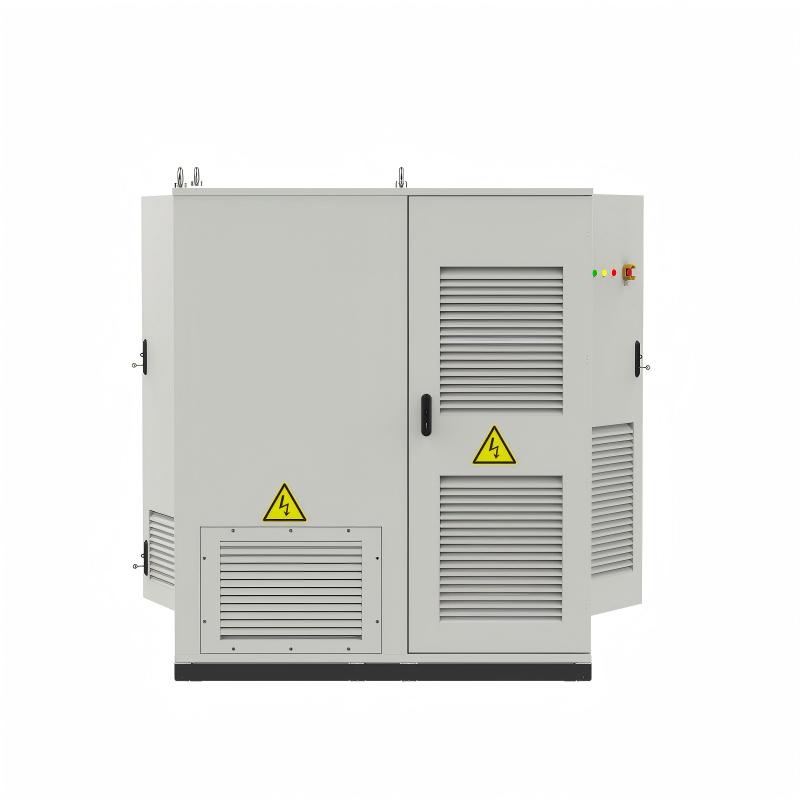

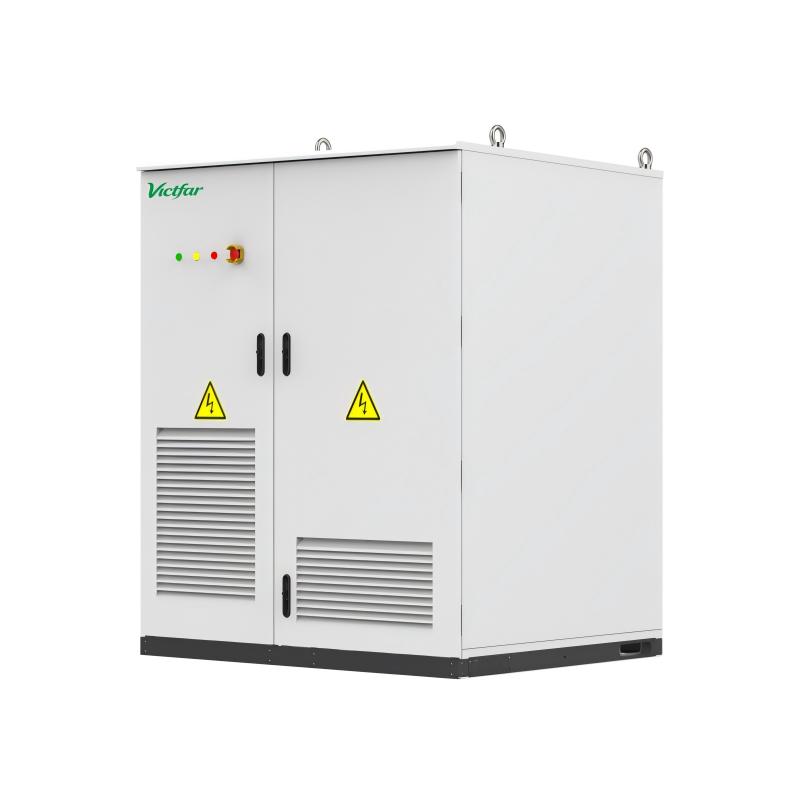

261kWh Liquid‑cooled All‑in‑one Outdoor Commercial & Industrial BESS Cabinet
All‑in‑one support for grid‑tied, off‑grid, PV and diesel generator linkage
High‑efficiency liquid‑cooled thermal‑control system with uniform cell temperature
Dual‑level fire‑protection: pack‑level and cabinet‑level safety safeguards
Only PV, grid and load connections required on‑site, greatly reducing on‑site construction workload
High‑performance high‑voltage BMS

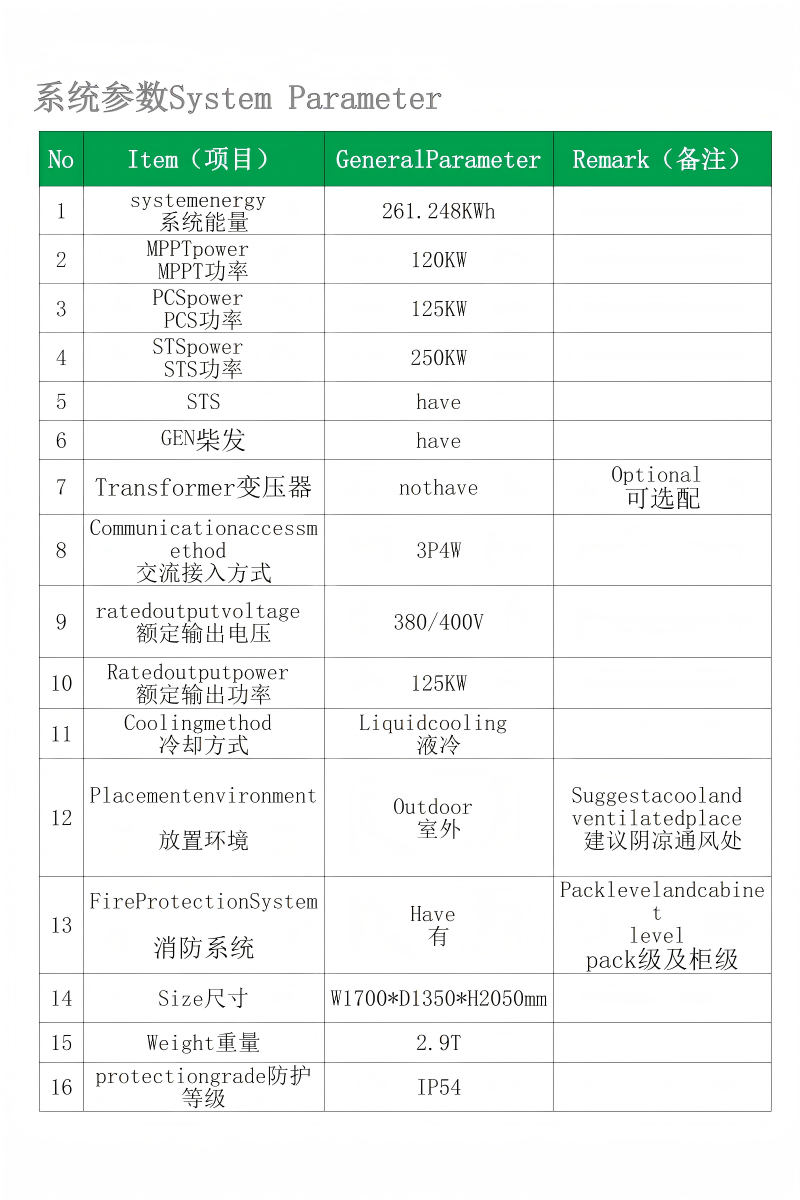

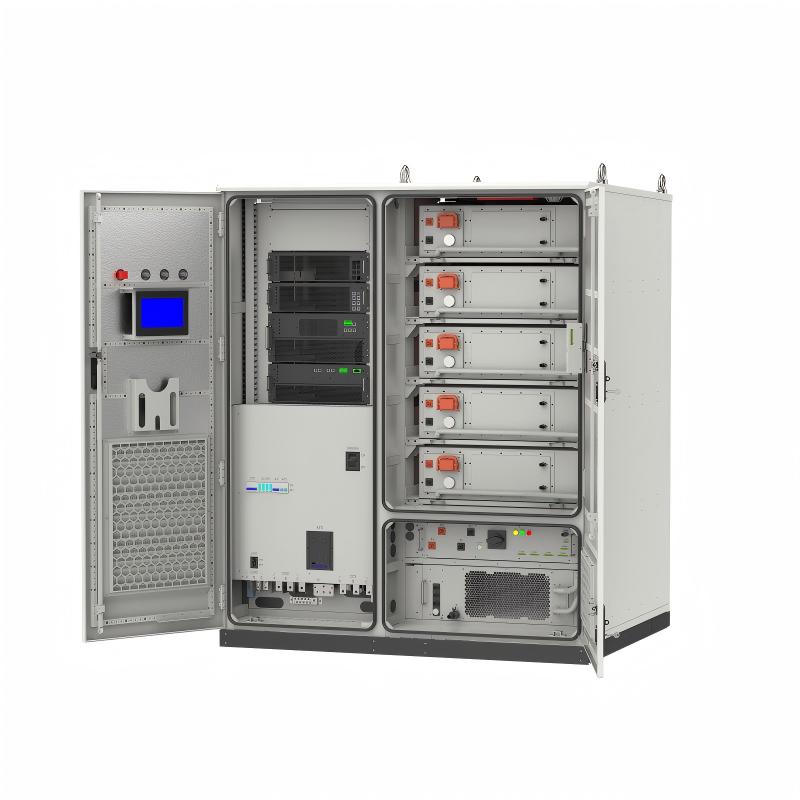

Liquid‑cooled All‑in‑one Outdoor C&I BESS Cabinet, system capacity 261.248kWh, 125kW rated PCS power, integrated 120kW MPPT PV module and 250kW STS static transfer switch. Fully supports grid‑tied, off‑grid, PV access and diesel generator linkage. Outdoor cabinet‑type unit with IP54 protection grade. Standard‑equipped with dual‑level aerosol fire‑protection system at pack‑level and cabinet‑level. Adopts 314Ah high‑voltage LiFePO4 cells. Features multi‑communication interfaces including CAN / RS485 / Ethernet. Suitable for commercial & industrial energy‑storage projects such as factories, industrial parks, micro‑grids and solar‑diesel hybrid systems.
