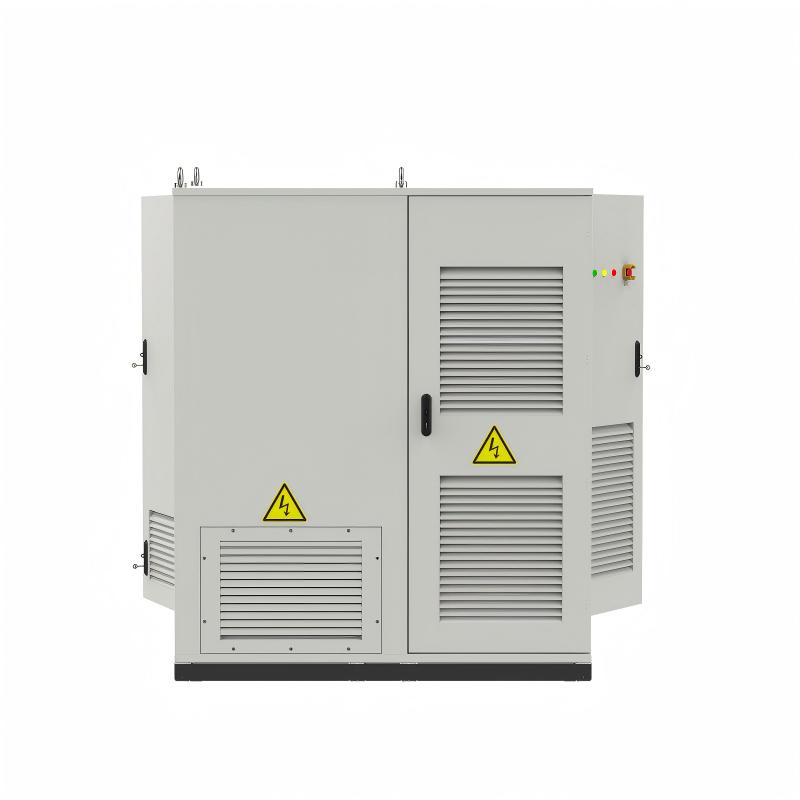

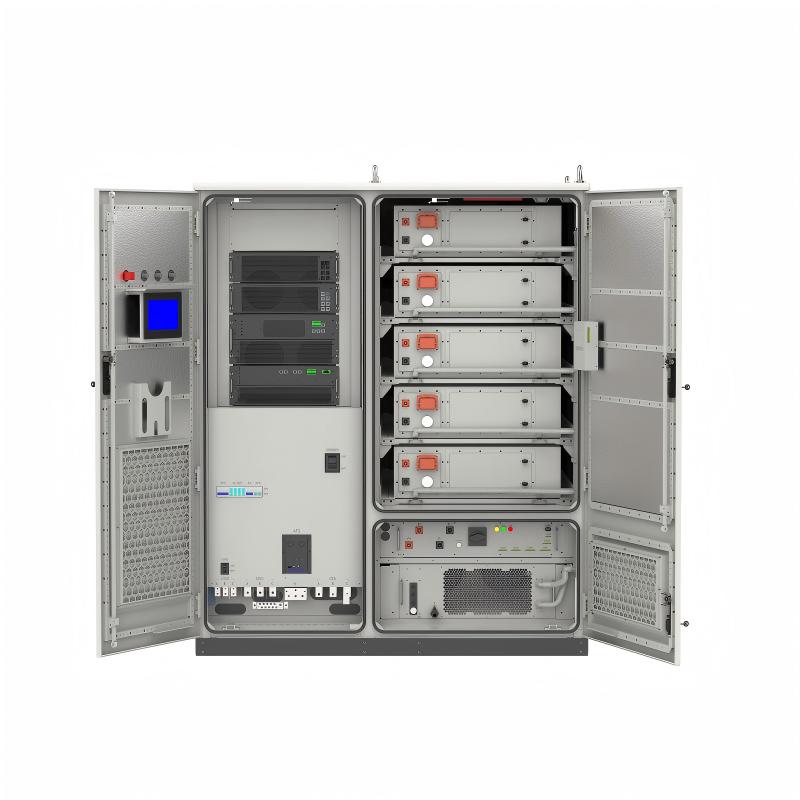

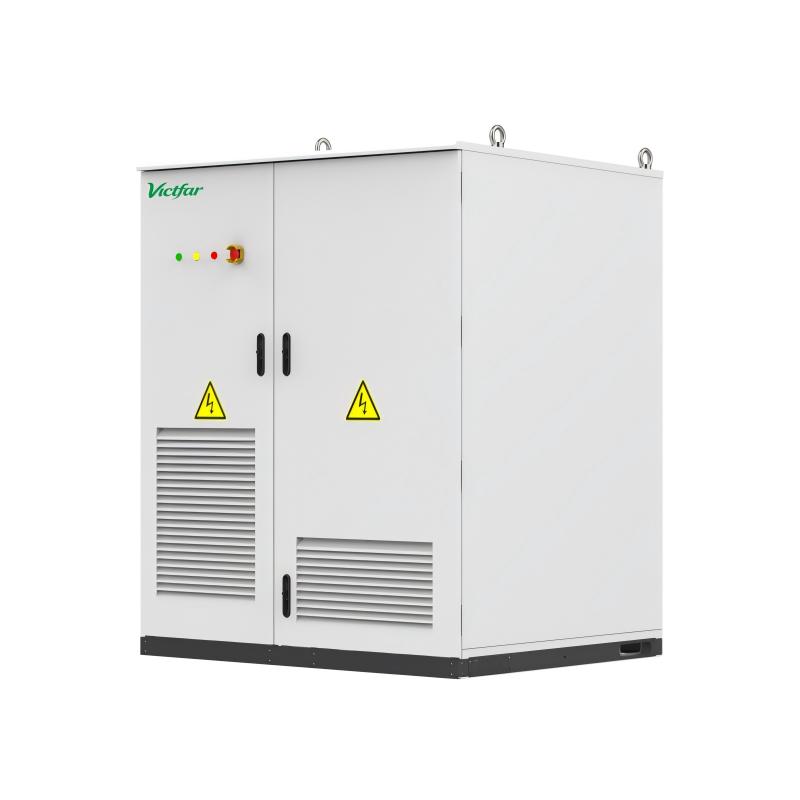

241kWh Liquid‑cooled All‑in‑one Outdoor Commercial & Industrial BESS Cabinet
Natively supports grid‑tied, off‑grid, PV and diesel generator linkage
High‑efficiency liquid‑cooled thermal management system for more uniform temperature control
Grid‑tied to off‑grid transfer time ＜10 ms, uninterrupted power supply during mains failure
ual‑level fire protection: pack‑level and cabinet‑level safety safeguards
IP54 high‑protection outdoor integrated cabinet
Multiple communication protocols supported, compatible with upper computer for remote monitoring & management

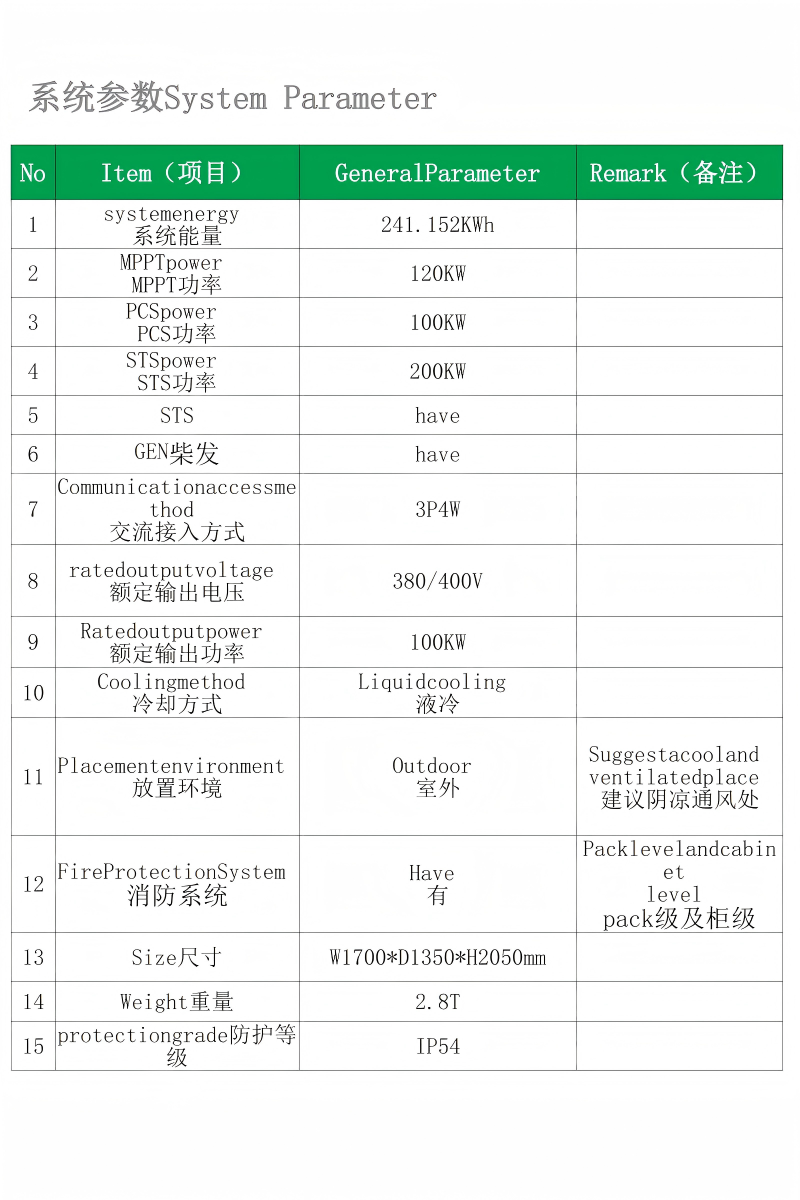

Liquid‑cooled All‑in‑one Outdoor C&I BESS Cabinet, system capacity 241.152kWh, 100kW PCS power, built‑in 120kW MPPT PV module and 200kW STS static transfer switch, supports diesel generator access. 3‑phase 4‑wire 380/400V AC output, full functions of grid‑tied, off‑grid, PV access and diesel generator linkage. Outdoor cabinet‑type unit with IP54 protection grade. Standard‑equipped with dual‑level fire‑protection system at pack‑level and cabinet‑level. Adopts 314Ah high‑voltage LiFePO4 cells, total weight 2.8T. Designed for commercial & industrial energy‑storage projects such as factories, industrial parks, micro‑grids and solar‑diesel hybrid systems.
